Premap & Relocalization

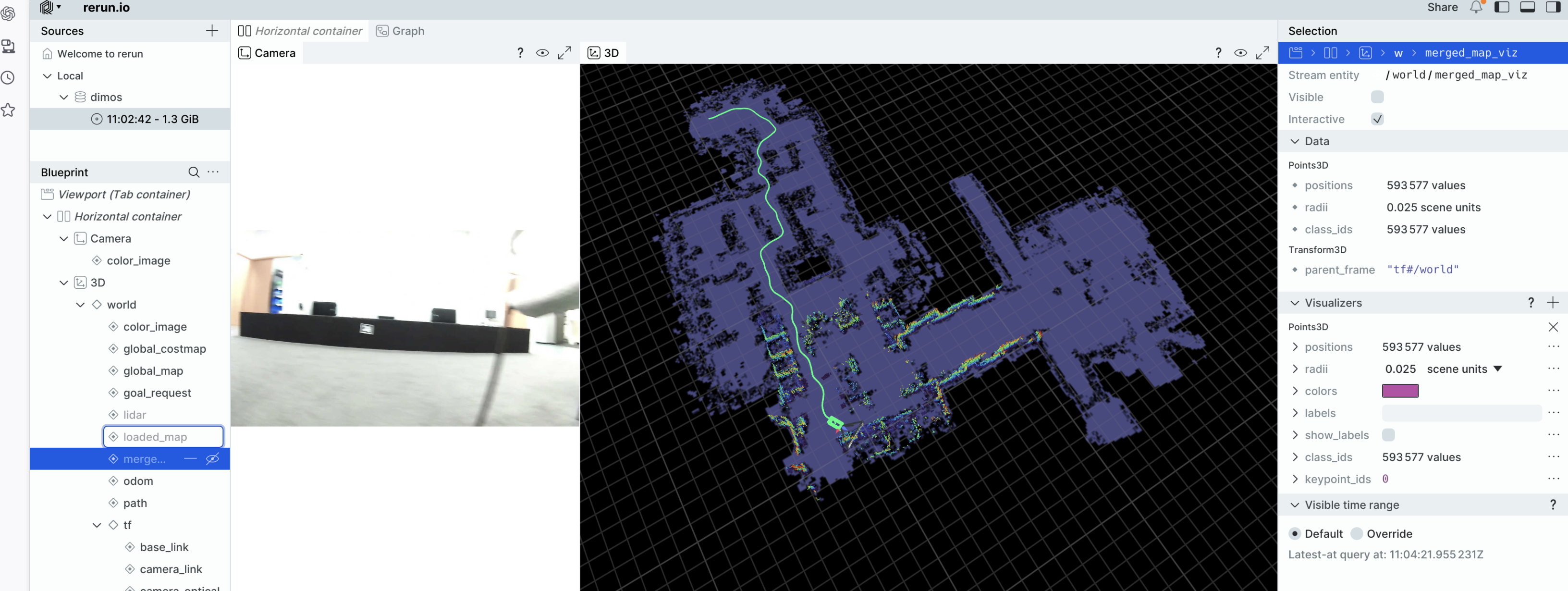

Relocalization lets a Go2 navigate on a previously built map instead of only on what it sees right now. At runtime, RelocalizationModule aligns live LiDAR to a saved premap and publishes a world → map transform, so the costmap and planner operate on the live scan and premap together. relocalize on the live go2 and nav_to a point in the premap

relocalize on the live go2 and nav_to a point in the premap

Note: Requires DimOS v0.0.13 or newer for PGO loop closure and dimos map export.

This guide takes four steps:

Record a walk-through with unitree-go2-memory
Build the premap with dimos map global {DB_NAME} --export
Test relocalization in replay, no robot needed
Deploy on the live Go2

Throughout this guide, {DB_NAME} is the stem of your recording, for example recording_go2 for recording_go2.db. For map_file, pass the same stem and DimOS appends .pc2.lcm automatically.

1. Record a run

Drive the Go2 through the space you want as your premap. Close loops when you can because PGO uses revisits to correct drift.

dimos --robot-ip {YOUR_ROBOT_IP} run unitree-go2-memory

If ROBOT_IP is set in the environment or .env, you can omit --robot-ip:

dimos run unitree-go2-memory

This writes recording_go2.db to the repo root (DIMOS_PROJECT_ROOT) and records lidar, odom, and color_image plus the live TF tree. The recorder stamps lidar frames with the latest odom pose so dimos map global can reconstruct poses later- see Go2Memory.

Quick validation (optional)

Before building a premap, inspect the recording:

dimos mem summary recording_go2
dimos map replay recording_go2 --duration 60

summary prints stream names and time ranges. replay opens Rerun so you can confirm lidar and odometry look sane.

2. Build the premap

Export a loop-closed global map as .pc2.lcm:

dimos map global recording_go2 --export

Flag	Effect
`--export`	Run PGO and write `./{DB_NAME}.pc2.lcm` to the current working directory (implies `--pgo`)
`--no-gui`	Skip launching Rerun for headless servers or CI
`--pgo-tol 0.3`	Spatial dedup tolerance for keyframes in meters. Use `0` to keep all posed frames
`--voxel 0.05`	Voxel size in meters (default matches live mapper)

{DB_NAME} accepts a bare stem, ./path/to/file.db, or an absolute path. Bare names resolve in this order:

Current working directory
DIMOS_PROJECT_ROOT
data/ via LFS (get_data)

Examples:

dimos map global recording_go2 --export --no-gui
dimos map global ./recordings/office_walk.db --export
dimos map global data/go2_hongkong_office.db --export

Sample log:

running PGO twopass map...
  Pass 1: 908 frames, 1 keyframes
exporting PGO twopass map to .../recording_go2.pc2.lcm...
wrote .../recording_go2.pc2.lcm

Open the companion {DB_NAME}.rrd in Rerun to verify loop closure before deploying to hardware.

3. Relocalize in replay

Test alignment without the robot. unitree-go2-relocalization is unitree-go2 plus RelocalizationModule:

dimos --replay --replay-db recording_go2 run unitree-go2-relocalization \
  -o relocalizationmodule.map_file=recording_go2

map_file resolves {DB_NAME}.pc2.lcm with the same search order as above (cwd, then project root, then data/).

Reading the logs

Relocalization module started: map_file='recording_go2'  loaded_map.frame_id='map'
relocalize skipped: n_pts=37770 < MIN_LOCAL_POINTS=50000
relocalize rejected: fitness=0.433 < threshold=0.45 time_cost=8.1s n_pts=57385
relocalize: fitness=0.657 time_cost=3.0s n_pts=64703 reloc_t=[-0.007, -0.01, -0.102] TF 'world' -> 'map' published_t=[0.007, 0.009, 0.102]

relocalize skipped means the live submap is still warming up- fewer than MIN_LOCAL_POINTS points accumulated. relocalize rejected means a candidate alignment was found but its fitness was below the threshold, so no transform is published. Once relocalize: lines appear at info level, the world → map TF is live. You can replay a different .db from the same physical space against the same premap to test generalization.

Rerun visualization

Watch alignment in Rerun, which is enabled by default on Go2 blueprints:

Merged map shows the premap transformed into world plus the live scan, column-carved together.
Toggle the merged map entity off to compare the live scan alone against the merged costmap.

4. Relocalize on a live robot

Run the replay test first. On hardware, use the same blueprint and map_file:

dimos --robot-ip {YOUR_ROBOT_IP} run unitree-go2-relocalization \
  -o relocalizationmodule.map_file=recording_go2

Before sending navigation goals, walk through this checklist:

Place the Go2 in a region that overlaps the premap on the same floor with recognizable geometry.
Wait for relocalize: info lines. Skipped and rejected lines are normal for the first 30 to 60 seconds.
Confirm stable world → map TF in Rerun before sending navigation goals.
Click to navigate or use agent skills such as navigate_with_text on the aligned costmap.

How it works

The unitree-go2-relocalization blueprint is the standard Go2 navigation stack plus RelocalizationModule:

unitree-go2-relocalization blueprint module graph

Note that CostMapper builds the costmap from the merged map only while RelocalizationModule has a good alignment; until then it falls back to the live map alone.

File formats

File	Format	Produced by	Consumed by
`{name}.db`	memory2 SQLite (`lidar`, `odom`, `color_image`, …)	`unitree-go2-memory`	`dimos map *`, `--replay-db`
`{name}.pc2.lcm`	LCM-encoded `PointCloud2` premap	`dimos map global --export`	`RelocalizationModule` (`map_file`)
`{name}.rrd`	Rerun recording (visual QA)	`dimos map global`	Rerun viewer

Configuration reference

CLI overrides use blueprint module config (-o relocalizationmodule.<field>=…):

Field	Default	Description
`map_file`	`None` (module disabled)	Premap stem or path. DimOS appends `.pc2.lcm` automatically
`fitness_threshold`	`0.45`	Minimum ICP fitness to accept a relocalization (0 to 1)
`publish_loaded_map`	`false`	Republish raw premap on `loaded_map` every 2 s
`use_carving`	`true`	Column-carve when merging premap and live scan

Constants are not overridable via CLI today:

Constant	Value	Role
`MIN_LOCAL_POINTS`	`50_000`	Minimum live map points before attempting relocalization
`RELOC_INTERVAL`	`2.0` s	Throttle between relocalization attempts
`PUBLISH_INTERVAL`	`2.0` s	TF publish rate

To accept all candidates for visualization only (not for production nav):

-o relocalizationmodule.fitness_threshold=0.0

Troubleshooting

Symptom	Likely cause	Fix
`Relocalization module disabled (no map_file configured)`	Missing `-o relocalizationmodule.map_file=…`	Set `map_file` to your premap stem
File not found for `.pc2.lcm`	Export not run or wrong cwd	Run `dimos map global … --export` and check cwd or `data/`
Long stretch of `relocalize skipped`	Map still accumulating points	Wait or drive slowly through mapped geometry
Repeated `relocalize rejected`	Poor overlap with premap or wrong space	Start in a known area and check premap in `.rrd`
Nav works but map looks misaligned	Low fitness accepted in debug mode	Raise `fitness_threshold` back to default `0.45`
PGO map looks wrong	Bad odometry in recording	Run `dimos map replay` or `summary` and re-record with smoother motion

For hardware setup, simulation, and the full blueprint list, see the Go2 platform guide. The v0.0.13 release notes summarize the PGO, dimos map, and relocalization work this guide builds on.
